Model Whirlpool 1395^1A GAS RANGE – Common Parts & Diagrams

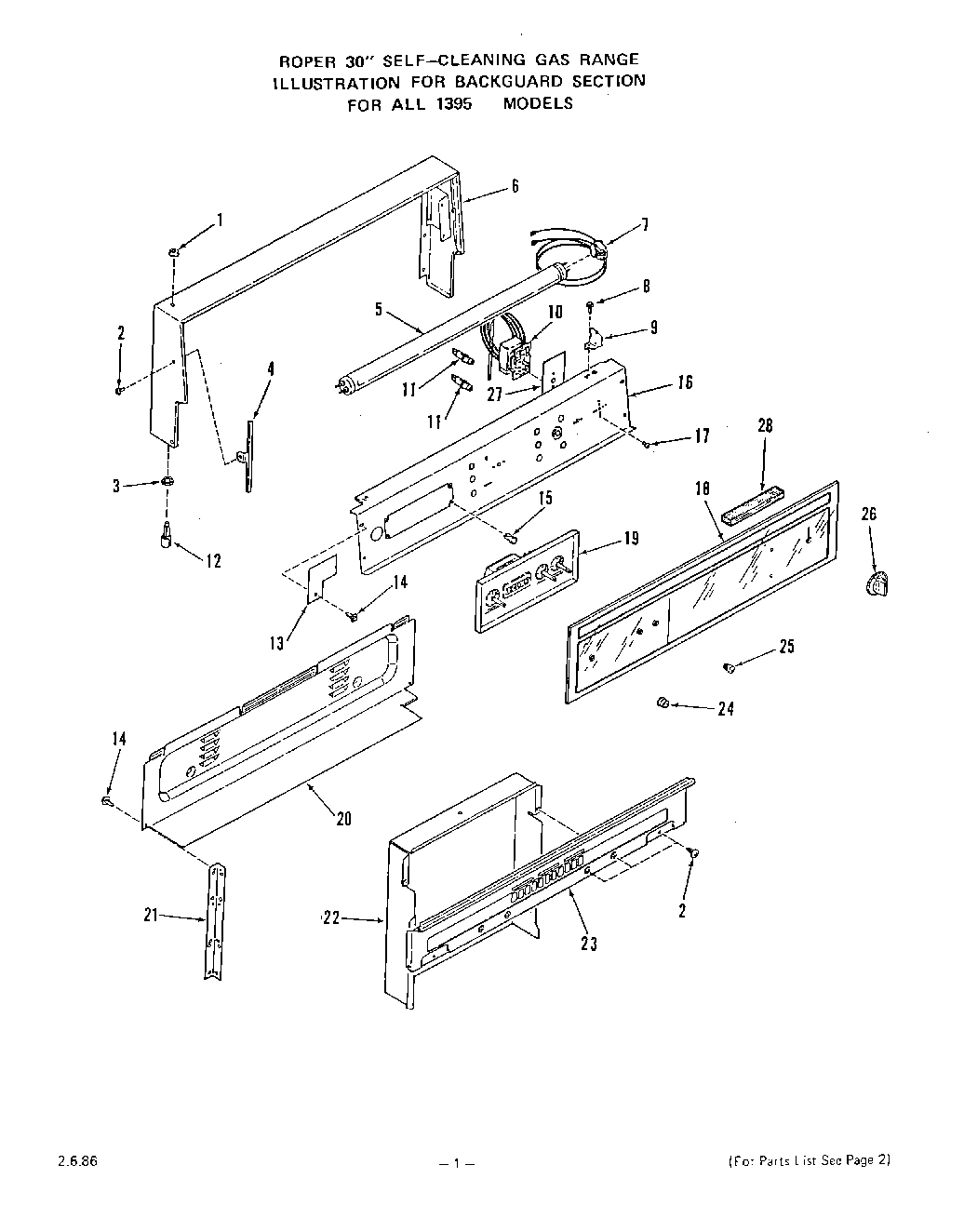

01 - BACKGUARD
08 - OVEN DOOR

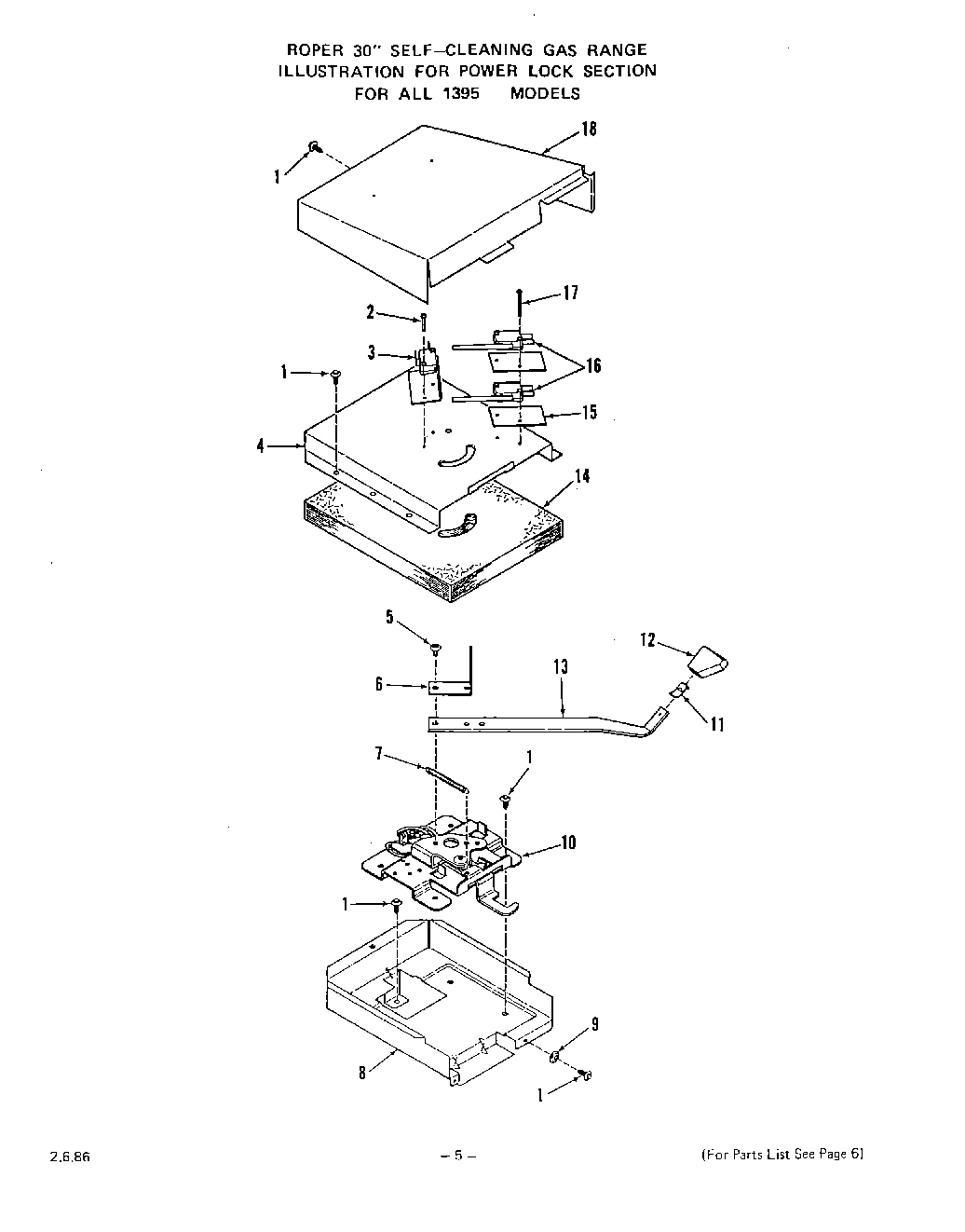

04 - POWER LOCK
05 - TOP BURNER

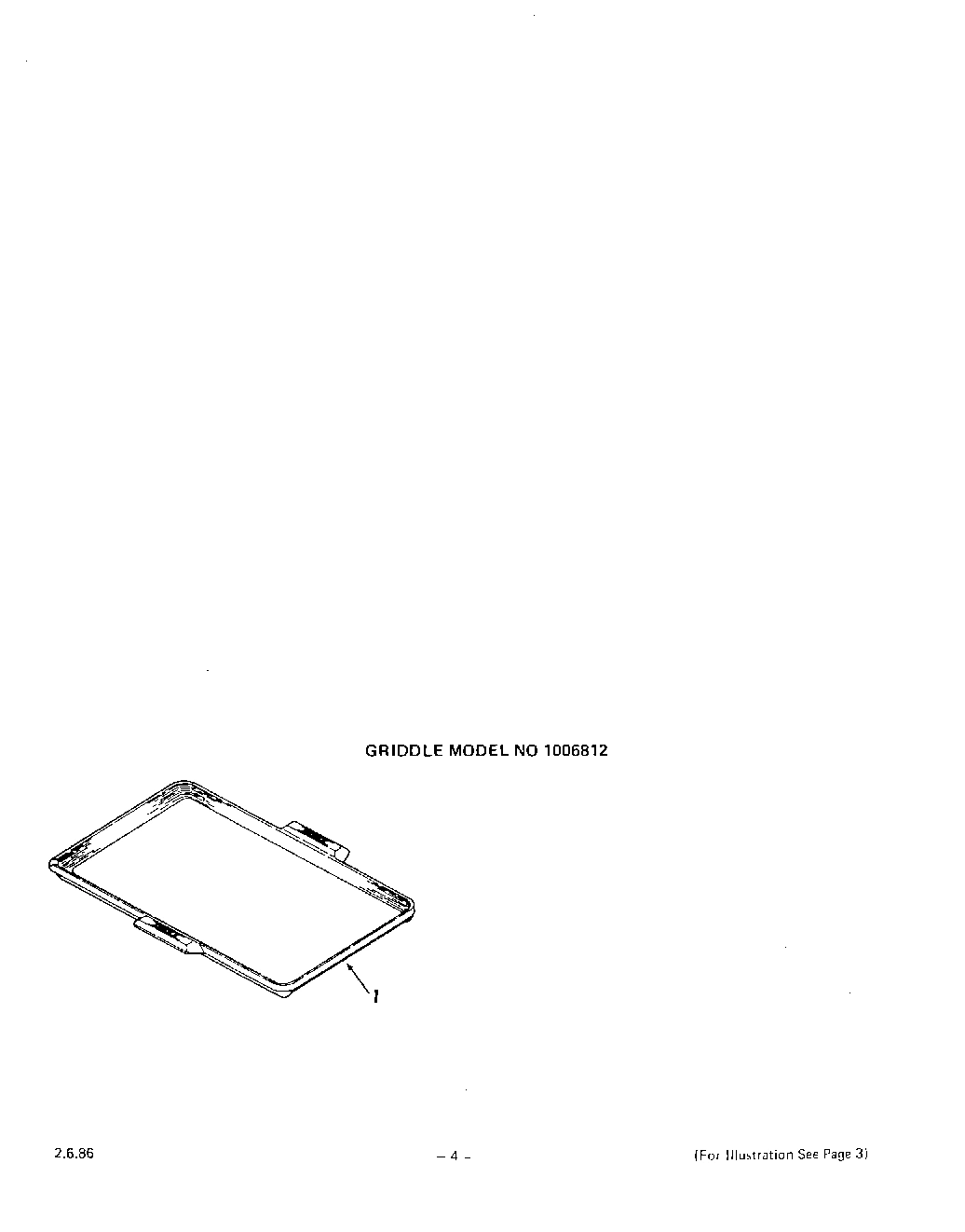

03 - GRIDDLE

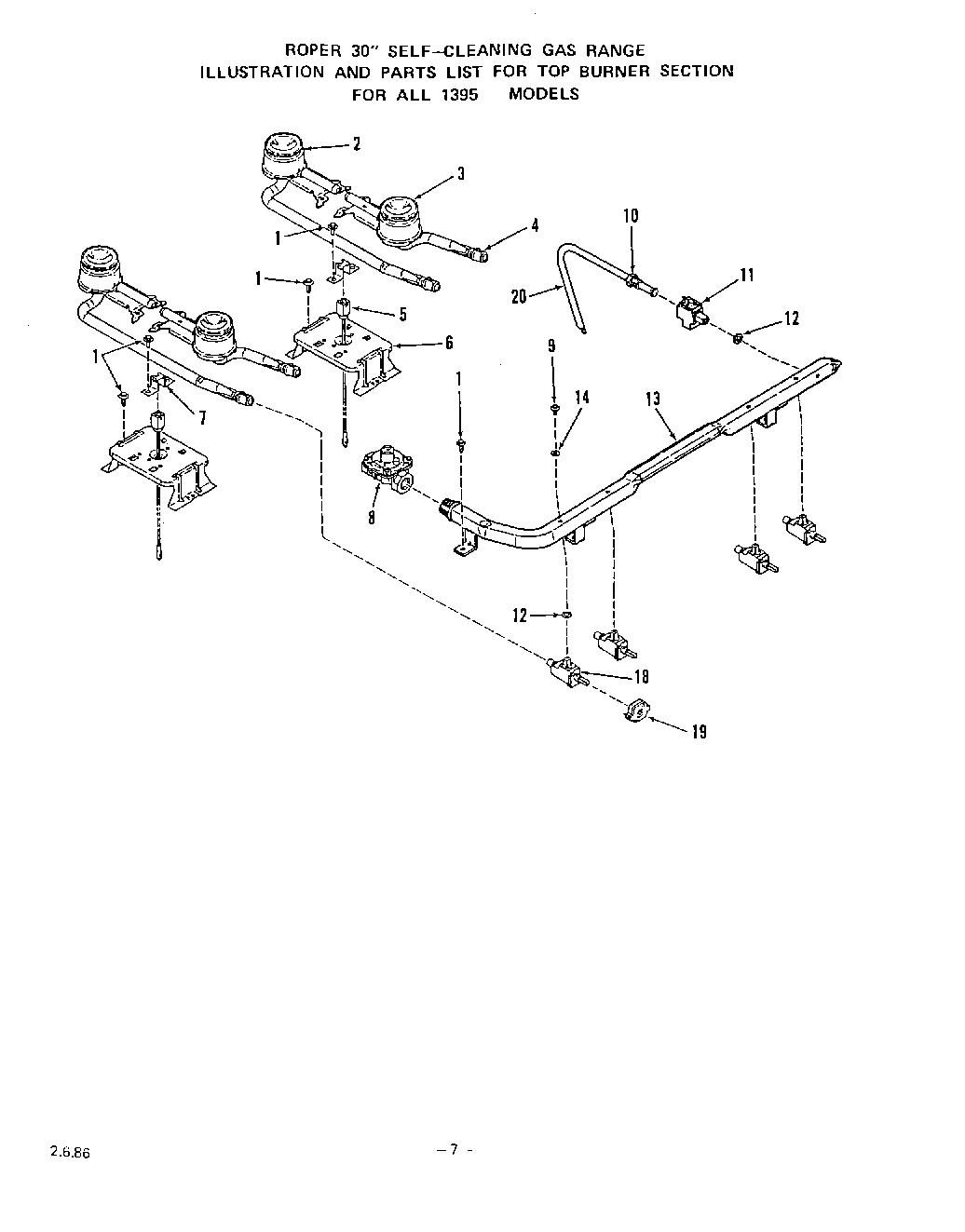

06 - BROILER AND OVEN BURNER

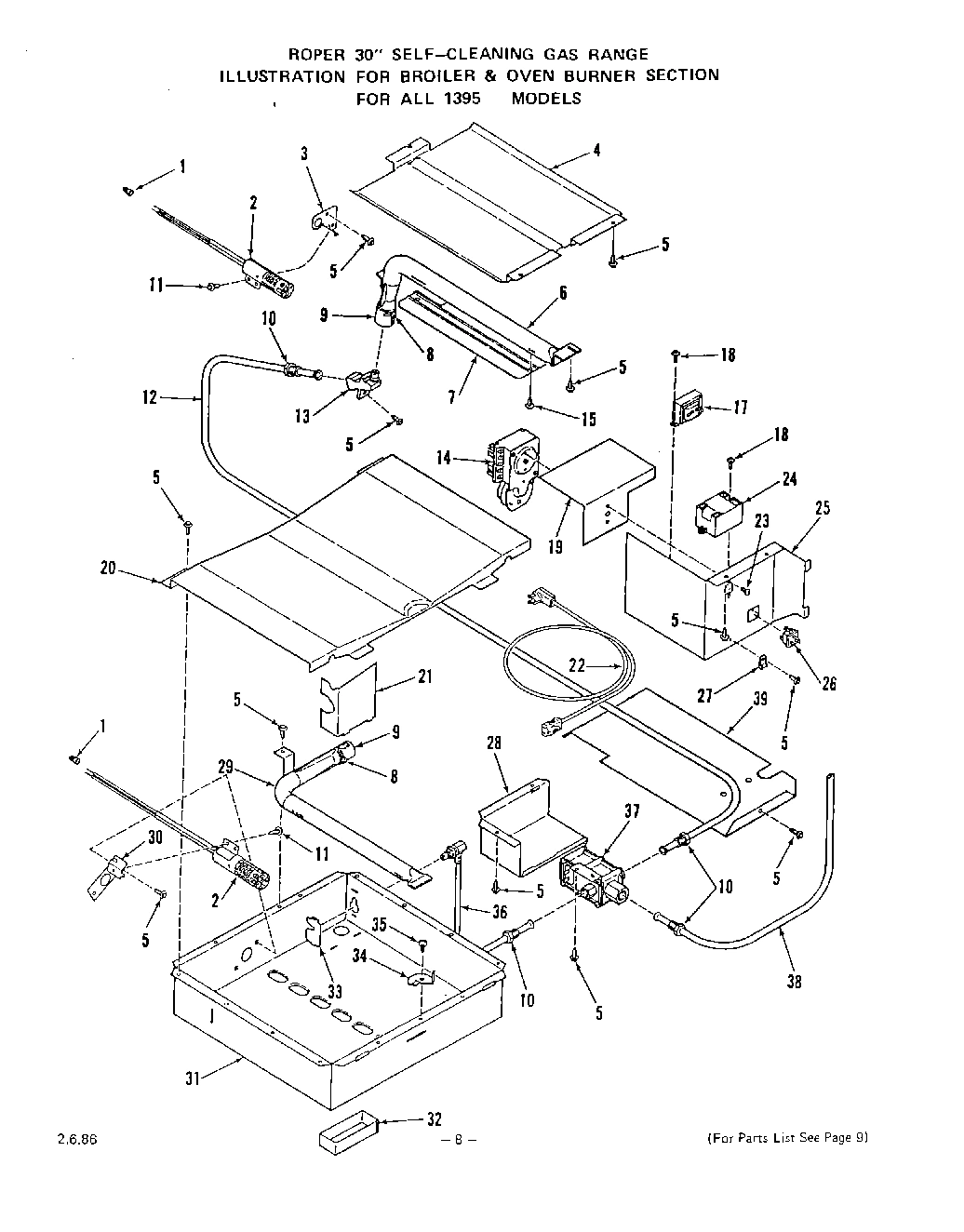

07 - OVEN BODY

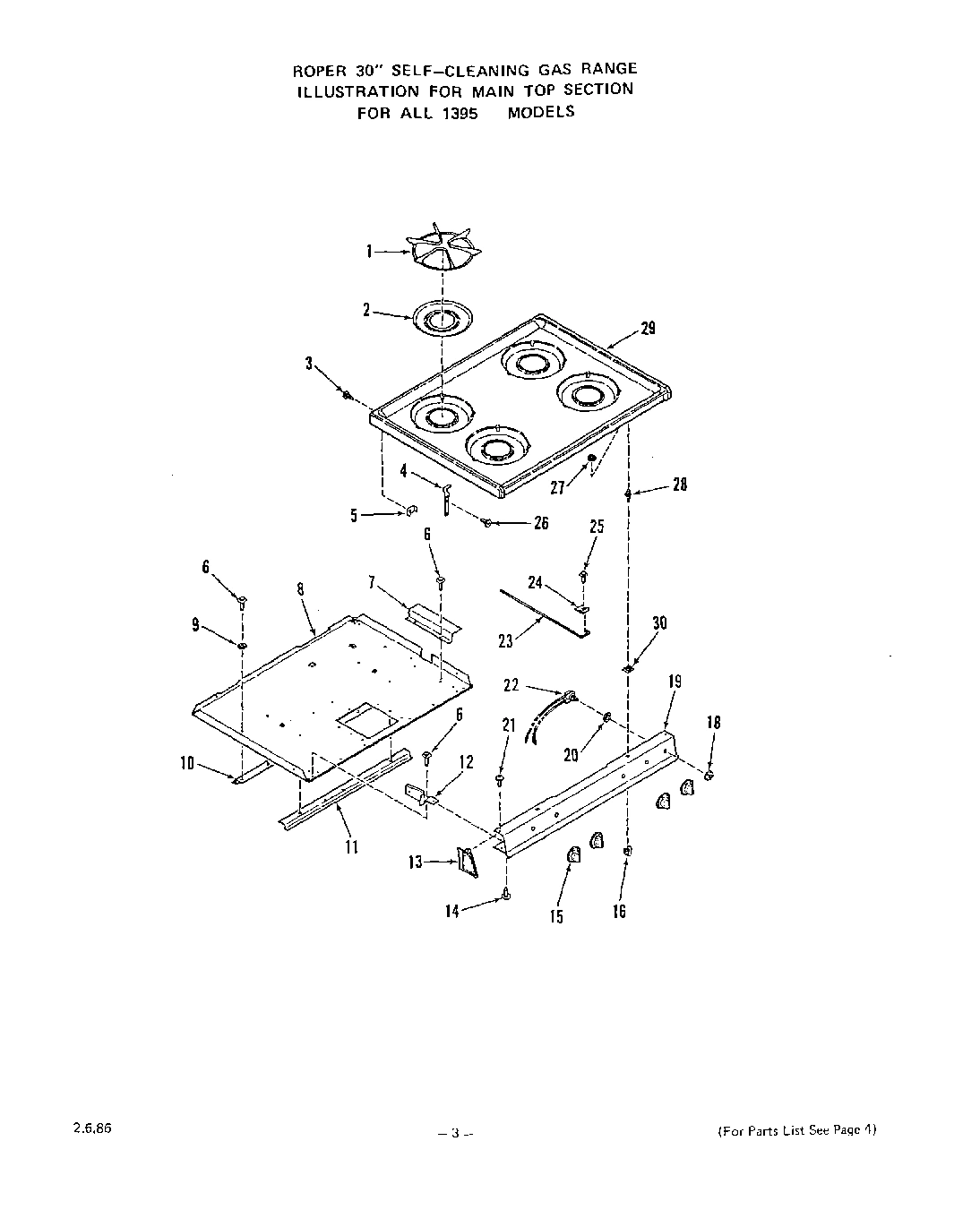

02 - MAIN TOP
10 - SECTION
Common parts from model Whirlpool 1395^1A GAS RANGE
1
Set-On Griddle WPL 289671 Contact Us For Availability
1
Top Grate (4 Req) WPL 316786 Contact Us For Availability
1
Knurled Nut WPL 87403 Contact Us For Availability
1
Wire Connector WPL 103595 Contact Us For Availability
2
Wire Shield WPL 327809 Contact Us For Availability
2
Screw 4-40x11/16`` WPL 328956 Contact Us For Availability
2
Aeration Pan (4 Req) WPL 322888 Contact Us For Availability
2
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
2
Rear Top Burner-Rt. or Lt. (Inc`s. Key 4) WPL 327075 Contact Us For Availability
2
Igniter-Broiler & Oven Burner WPL 319887 Contact Us For Availability
3
Main Back WPL 330167 Contact Us For Availability
3
Micro Switch WPL 329170 Contact Us For Availability
3
Pal Nut 3/8-27 WPL 236129 Contact Us For Availability
3
Front Top Burner-Rt. or Lt. (Inc`s.Key 4) WPL 327074 Contact Us For Availability
3
Bracket-Broiler Burner Igniter WPL 327804 Contact Us For Availability
4
Insulation-Oven Back & Bottom (1 Piece) WPL 329146 Contact Us For Availability
4
Cover-Lock Box WPL 328486 Contact Us For Availability
4
Hinge-Main Top (Right) WPL 320921 Contact Us For Availability
4
Hinge-Main Top (Left) WPL 320922 Contact Us For Availability
4
Air Shutter (4 Req) WPL 327198 Contact Us For Availability
4
Baffle-Broiler Burner WPL 327807 Contact Us For Availability
4
End Trim- Top Lamp Glass (Lt. or Rt.) WPL 299705 Contact Us For Availability
5
Retainer-Insulation (Lt. or Rt.) WPL 328959 Contact Us For Availability
5
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
5
bracket-main top hinge (lt. or rt.) WPL 327403 Contact Us For Availability
5
Electrode-Spark Igniter (Right) WPL 329462 Contact Us For Availability
5
Electrode-Spark Igniter (Left) WPL 329464 Contact Us For Availability
5
Fluorescent Lamp (20 W - 24``) WPL 71734 Contact Us For Availability
6
Spacer-Main Top (2 Req) WPL 326914 Contact Us For Availability
6
Extension-Handle WPL 328470 Contact Us For Availability
6
Support-Top Burner (Lt. or Rt.) WPL 327073 Contact Us For Availability
6
Broiler Burner (Inc`s. Keys 7, 8, 9, 15) WPL 330163 Contact Us For Availability
6
Frame-Backguard WPL 329724 Contact Us For Availability
7
Body Side (Lt. or Rt.) (White) WPL 326055 Contact Us For Availability
7
Body Side (Lt. or Rt.) (Golden Wheat) WPL 326058 Contact Us For Availability
7
Body Side (Lt. or Rt.) (Almond) WPL 326059 Contact Us For Availability
7
Body Side (Lt. or Rt.) (Platinum) WPL 327939 Contact Us For Availability
7
Body Side (Lt. or Rt.) (Toast) WPL 327940 Contact Us For Availability
7
Spring WPL 313075 Contact Us For Availability
7
Raceway WPL 329841 Contact Us For Availability
7
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
7
Baffle WPL 328660 Contact Us For Availability
7
Holder-Fluorescent Lamp (Left) WPL 328125 Contact Us For Availability
7
Holder-Fluorescent Lamp (Right) WPL 329166 Contact Us For Availability
8
Screw 8ABx5/8`` WPL 314124 Contact Us For Availability
8
Lock Box WPL 328489 Contact Us For Availability
8
Bottom-Burner Box (13950A Models) WPL 327849 Contact Us For Availability
8
Bottom-Burner Box (13951A, 13952A Models) WPL 331574 Contact Us For Availability
8
Pressure Regulator (13950A. 13951A Models) WPL 311106 Contact Us For Availability
8
Pressure Regulator (13952A Models) WPL 324528 Contact Us For Availability
8
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
8
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
9
Spring-Oven Door (Lt. or Rt.) WPL 326965 Contact Us For Availability
9
Washer WPL 21067 Contact Us For Availability
9
Washer WPL 106462 Contact Us For Availability
9
Mounting Screw 1/4-20 WPL 311455 Contact Us For Availability
9
Air Shutter WPL 312988 Contact Us For Availability
9
Bracket-Fluorescent Lamp (Rt. or Lt.) WPL 113236 Contact Us For Availability
10
Hinge-Oven Door (Right) WPL 326012 Contact Us For Availability
10
Hinge-Oven Door (Left) WPL 326013 Contact Us For Availability
10
Latch Assm. (Inc`s. Key 7) WPL 328656 Contact Us For Availability
10
Rear Stiffener-Burner Box Bottom WPL 329158 Contact Us For Availability
10
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
10
Oven Thermostat WPL 328279 Contact Us For Availability
11
Base w/Leg Levelers (Lt. or Rt.) WPL 327020 Contact Us For Availability
11
Clip-Knob WPL 328474 Contact Us For Availability
11
Front Stiffener-Burner Box Bottom WPL 327705 Contact Us For Availability
11
Shut Off Valve WPL 326830 Contact Us For Availability
11
Indicator Light WPL 296317 Contact Us For Availability
12
Screw WPL 331704 Contact Us For Availability
12
Knob-Lock WPL 328475 Contact Us For Availability
12
Bracket-Manifold Panel (Left) WPL 328808 Contact Us For Availability
12
Bracket-Manifold Panel (Right) WPL 328924 Contact Us For Availability
12
Rubber Gasket WPL 313563 Contact Us For Availability
12
Tubing 3/8`` (Control Valve to Broiler Orific WPL 286823 Contact Us For Availability
12
Push Switch WPL 288557 Contact Us For Availability
13
Lining-Bro Door (13950A Models) WPL 328428 Contact Us For Availability
13
Lining-Bro Door (13951A, 13952A Models) WPL 331616 Contact Us For Availability
13
Handle-Latch WPL 333710 Contact Us For Availability
13
End Cap-Manifold Panel (Right) WPL 328498 Contact Us For Availability
13
End Cap-Manifold Panel (Left) WPL 328499 Contact Us For Availability
13
Manifold Pipe WPL 328488 Contact Us For Availability
13
Broiler Orifice Fitting (13950A, 13951A Model WPL 330262 Contact Us For Availability
13
Broiler Orifice Fitting (13952A Models) WPL 331992 Contact Us For Availability
13
Shield WPL 301799 Contact Us For Availability
14
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
14
Insulation-Latch WPL 328472 Contact Us For Availability
14
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
14
Rubber Gasket WPL 311692 Contact Us For Availability
14
Timer WPL 328350 Contact Us For Availability
15
Catch-Strike WPL 71003 Contact Us For Availability
15
Insulator-Switch (3 Req) WPL 329171 Contact Us For Availability
15
Knob-Gas Valve (4 Reg) WPL 328805 Contact Us For Availability
15
Screw 8 - 32x3/8`` WPL 97217 Contact Us For Availability
15
Tubular Clip (4 Req.) WPL 293577 Contact Us For Availability
16
Leg Leveler (4 Req) WPL 326125 Contact Us For Availability
16
Micro Switch WPL 329169 Contact Us For Availability
16
Catch-Main Top Strike (2 Req) WPL 24667 Contact Us For Availability
16
Mounting Panel-Controls WPL 327738 Contact Us For Availability
17
Screw 4-40 x1 9/16`` WPL 331081 Contact Us For Availability
17
Ballast WPL 98186 Contact Us For Availability
17
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
18
Storage Compartment WPL 328491 Contact Us For Availability
18
Wire Cover-Latch Switches WPL 328490 Contact Us For Availability
18
Gas Valve (4 Req) (13950A, 13951A Models) WPL 329272 Contact Us For Availability
18
Gas Valve (4 Req) (13952A Models) WPL 331996 Contact Us For Availability
18
Screw 6-20x3/8`` WPL 329382 Contact Us For Availability
18
Top Lamp Glass WPL 328286 Contact Us For Availability
19
Lower Insulation Retainer WPL 331144 Contact Us For Availability
19
Manifold Panel WPL 328497 Contact Us For Availability
19
Switch-Gas Valve (4 Req) WPL 310253 Contact Us For Availability
19
Shield WPL 329903 Contact Us For Availability
19
Clock w/1 Hr. Timer WPL 320924 Contact Us For Availability
20
Insulation WPL 330166 Contact Us For Availability
20
Baffle-Oven Burner WPL 328480 Contact Us For Availability
20
Wire Cover-Backguard WPL 328281 Contact Us For Availability
21
Wire Shield WPL 327808 Contact Us For Availability
21
Shield-Orifice Fitting WPL 331864 Contact Us For Availability
21
Support-Backguard (Lt. or Rt.) WPL 319361 Contact Us For Availability
22
Bushing WPL 324257 Contact Us For Availability
22
Push Switch-Oven Light WPL 330080 Contact Us For Availability
22
Range Service Cord WPL 332479 Contact Us For Availability
22
Shield-Flue Deflector WPL 328487 Contact Us For Availability
23
Flue Deflector WPL 331564 Contact Us For Availability
23
Support Rod-Main Top WPL 326066 Contact Us For Availability
23
Bottom Front-Backguard WPL 328282 Contact Us For Availability
24
Insulation-Oven Top & Sides (1 Piece) WPL 329147 Contact Us For Availability
24
Clamp WPL 326348 Contact Us For Availability
24
Module-Spark Igniter WPL 320990 Contact Us For Availability
24
Knob-Clock (Minute Timer) WPL 294810 Contact Us For Availability
25
Flue Box WPL 327781 Contact Us For Availability
25
Mounting Bracket-Components WPL 329442 Contact Us For Availability
25
Knob-Clock (Start & Stop Time) WPL 109225 Contact Us For Availability
26
Oven Body (13950A Models) WPL 327779 Contact Us For Availability
26
Oven Body (13951A, 13952A Models) WPL 331568 Contact Us For Availability
26
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
26
Disconnect WPL 232150 Contact Us For Availability
26
Knob-Thermostat WPL 329726 Contact Us For Availability
27
Cover WPL 304835 Contact Us For Availability
27
Keps Nut 8-32 WPL 239764 Contact Us For Availability
27
Clip WPL 106767 Contact Us For Availability
27
Barrier-Thermostat WPL 330287 Contact Us For Availability
28
Strike (2 Req) WPL 299784 Contact Us For Availability
28
Clip-Thermostat Bulb (2 Req) WPL 321539 Contact Us For Availability
28
Cover-Control Valve WPL 328481 Contact Us For Availability
28
Foam Strip WPL 328021 Contact Us For Availability
29
Holder-Oven Light Bulb WPL 87883 Contact Us For Availability
29
Main Top (White) WPL 328907 Contact Us For Availability
29
Main Top (Golden Wheat) WPL 328910 Contact Us For Availability
29
Main Top (Almond) WPL 328911 Contact Us For Availability
29
Main Top (Platinum) WPL 328913 Contact Us For Availability
29
Main Top (Toast) WPL 328914 Contact Us For Availability
29
Oven Burner (13950A, 13951A Models) WPL 328482 Contact Us For Availability
29
Oven Burner (13952A Models) WPL 333746 Contact Us For Availability
30
Front Frame (13950A Models) WPL 327816 Contact Us For Availability
30
Front Frame (13951A, 13952A Models) WPL 332680 Contact Us For Availability
30
Washer (2 Req) WPL 310218 Contact Us For Availability
30
Bracket-Igniter WPL 311689 Contact Us For Availability
31
Hinge-13951A, 13952A Models WPL 107969 Contact Us For Availability
31
Catch-13950A Models WPL 328430 Contact Us For Availability
31
Bottom-Oven Burner Box WPL 327775 Contact Us For Availability
32
Bracket-Catch WPL 328429 Contact Us For Availability
32
Insulation Retainer-Oven Orifice WPL 329279 Contact Us For Availability
33
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
33
Plate-Orifice Fitting WPL 328473 Contact Us For Availability
34
Latch-Oven Burner Box Bottom WPL 328479 Contact Us For Availability
35
Front Panel-Storage Door (W WPL 326287 Contact Us For Availability
35
WPL 326290 WPL 326290 Contact Us For Availability
35
WPL 326291 WPL 326291 Contact Us For Availability
35
WPL 327941 WPL 327941 Contact Us For Availability
35
WPL 327942 WPL 327942 Contact Us For Availability
35
WPL 330480 WPL 330480 Contact Us For Availability
35
WPL 330483 WPL 330483 Contact Us For Availability
35
WPL 330484 WPL 330484 Contact Us For Availability
35
WPL 330486 WPL 330486 Contact Us For Availability
35
WPL 330487 WPL 330487 Contact Us For Availability
35
Shoulder Screw WPL 328584 Contact Us For Availability
36
WPL 292240 WPL 292240 Contact Us For Availability
36
Tubing 3/8`` w/Orifice Fitting (Control Valve WPL 329174 Contact Us For Availability
36
Tubing 3/8`` w/Orifice Fitting (Control Valve WPL 331994 Contact Us For Availability
37
WPL 302343 WPL 302343 Contact Us For Availability
37
Control Valve WPL 306267 Contact Us For Availability
38
Tubing 3/8`` (Control Valve to Shut-Off Va WPL 280436 Contact Us For Availability
39
WPL 328485 WPL 328485 Contact Us For Availability
39
WPL 331563 WPL 331563 Contact Us For Availability
39
WPL 331143 WPL 331143 Contact Us For Availability
40
WPL 229372 WPL 229372 Contact Us For Availability
41
WPL 114989 WPL 114989 Contact Us For Availability
42
WPL 229371 WPL 229371 Contact Us For Availability
43
WPL 111257 WPL 111257 Contact Us For Availability
44
WPL 237762 WPL 237762 Contact Us For Availability
45
WPL 326069 WPL 326069 Contact Us For Availability
46
WPL 326300 WPL 326300 Contact Us For Availability
46
WPL 331592 WPL 331592 Contact Us For Availability
47
WPL 326297 WPL 326297 Contact Us For Availability
48
WPL 281160 WPL 281160 Contact Us For Availability
49
WPL 303097 WPL 303097 Contact Us For Availability
× ![]()
